Description

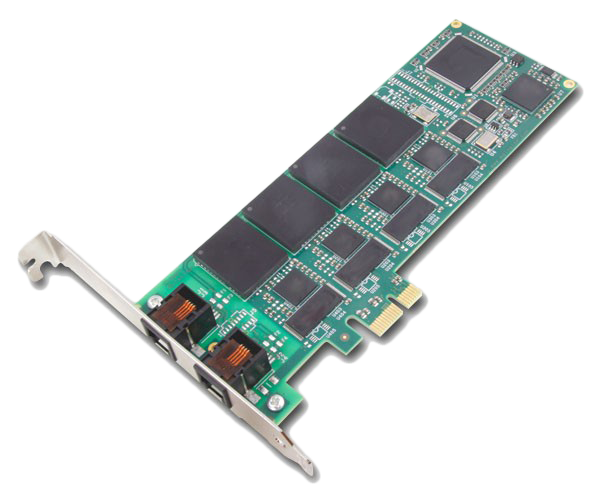

Mainpine IQ Express RF6120 2 Port Fax Board Details
- PCI Express boards for compact-sized computers
- Fits in 1X, 4X, 8X or 16X PCIe slots
- For use with two analog phone lines
- V.34 fax / JBIG Compression
- Includes Standard and Low Profile Brackets
- Product comes with (2) RJ11 phone jacks for a total of (2) lines
- 30-Day satisfaction guarantee
- 5-Year hardware warranty
Specifications
Physical Dimensions
- 6.60″ x 2.52″ (Low Profile bracket)
- 6.60″ x 4.72″ (Standard Profile Bracket)
Operating Systems
- Windows XP * Windows XP only supports 1-phone line for fax
- Windows Vista Business Edition * Windows Vista Business supports 1-phone only
- Windows 7 * Windows 7 supports 1-phone only
- Windows 8 * Windows 8 supports 1-phone only
- Windows 10 * Windows 10 supports 1-phone only
- Windows Server 2003
- Windows Server 2008 RC1 and RC2
- Windows Server 2012 RC1 and RC2
- Windows Server 2016
- Windows Server 2019
- Linux
* 32- and 64- bit support for all operating system versions above
Warranty
- 30-Day satisfaction guarantee
- 5-Year hardware warranty
Hardware
- POTS: Two RJ11 Connectors
- 56 MIPS CPU per port
- 120 MIPS DSP per port
- Global DAA
- Software controlled hardware reset per port
- Software readable 48bit serial number
- Single interrupt per board
- Power consumption: Less than 1 Watt
- Mix-and-match Mainpine and third-party hardware
* Product comes with (2) RJ11 phone jacks for a total of (2) lines
Fax Specifications
- ITU-T V.34 (Super G3), V.17, V.29, V.27 ter, V.21 ch. 2, and V.8 Call Establishment
- ITU-T T.30, T.31 (Service Class 1, 1.0, 2.0, 2.1)
- ECM Error Correction Mode
- MH, MR, MMR, JBIG and JPEG Compression
- Normal, fine, superfine, hyperfine and ultrafine resolution
- Color fax support
Environmental
- Operating temperature: 0 – 50 C
- Storage temperature: -20 – 85 C
- Relative humidity: 10% – 80%
- Non-condensing Altitude: 0 – 3660m
Standards and Approvals
- Manufacturing: BS EN ISO 9001:2000
- Telecom: TIA 968-A (FCC Part 68), IC CS03, TS 103 021 (TBR21)
- EMC: FCC Part 15, ICES-003, EN 55022, EN 55024
- Safety: UL 60950, CSA 60950, EN 60950
- Environmental: EU 2002/95/EC (“RoHS”), EU 2002/96/EC (“WEEE”), EN 50419
- CE Mark
- PCI Express Base 1.0a
